Grounded by a Lost Wedgie
11/26/14 at 11:46:03
Post Tools
There's a current Tech Section thread about a missing clutch cable's barrel -the small bit that captures the cable's soldered nipple and is a pivot point within the control lever. Newish owner had an issue that was quickly resolved when the missing cable barrel was discovered. A learning experience regarding all Airheads.

I'll share another small part that is easily lost or, perhaps, is already missing thanks to a PO. Either way, without this mysterious little part, it may result in a possible loss of control while riding.

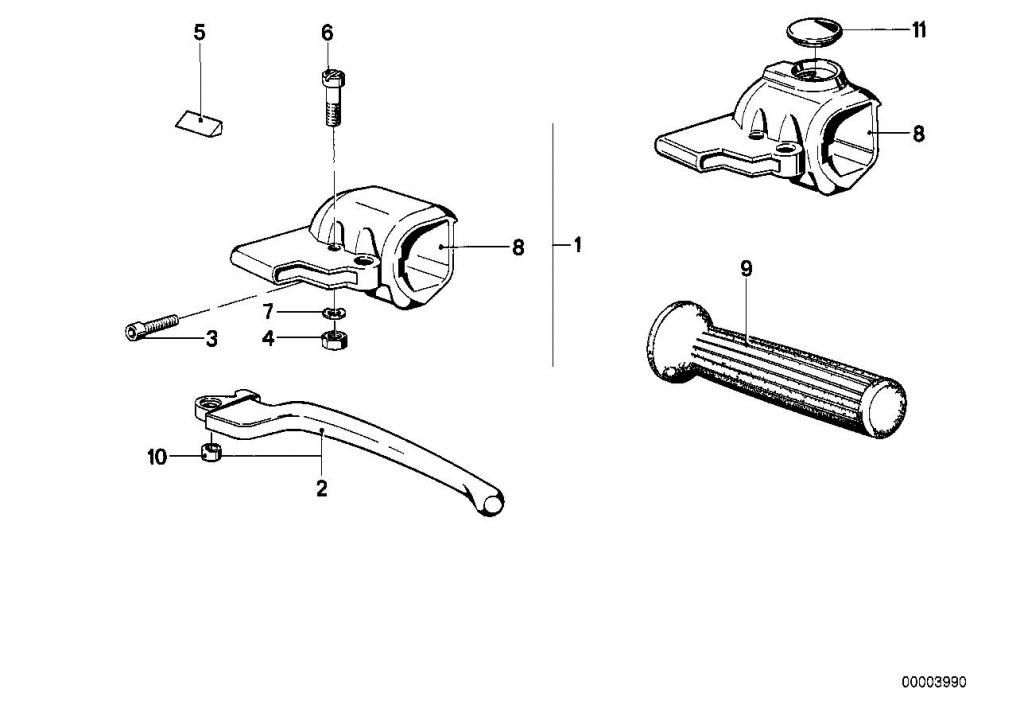

Notice the small wedge listed as #5 in the diagram. This small triangular bit of steel is what locks the control housing/lever perch to the handlebars. There is one machine screw that snugs the housing to the handlebar. Without the wedge installed, the aluminum 'ears' that form the housing's pinch bracket can be broken, resulting in the entire control assembly rotating about the handlebar or a worse case scenario, falling off as you properly apply a counter-steering push as you enter a sporty right-hander twisty.

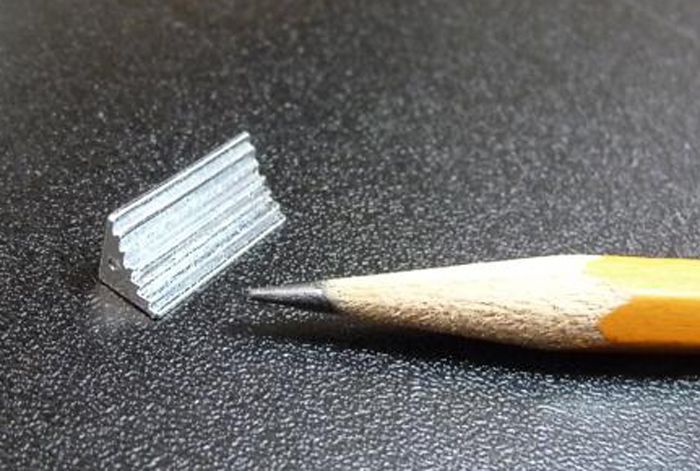

This is a photo of the BMW NLA wedge. Excellent photo showing just how small this part is. You can well imagine not even missing it should you not know of its existence. Think changing out a handlebar...
  Fortunately, Bob's BMW http://www.bobsbmw.com/ sells a German-made repop for a healthy $10.00USD. I thought about making my own until I noticed the serrations on the curved face that bite into the handlebar. The Bob's Wedgie is part #32721232929R. Other dealers possibly may have these.

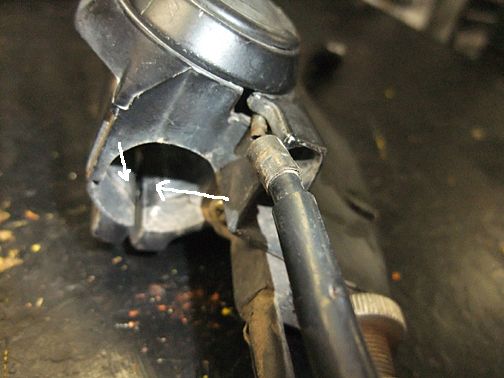

The only photo I could locate that shows where the wedge in installed is this nasty control housing offered on eBay. The white arrows indicate the install position. Note the flat areas for the wedge plus the alloy pinch ears. The fracture usually occurs to the ear under the machine screw's head. The BMW OEM wedge has a rounded notch that is captured by the machine screw, holding it in position during the tightening sequence. BTW, a new clutch-side handle unit is $89.00USD.



I do not have a handlebar housing unit that rotates but I plan to check all three Airheads just to be sure. I have a couple Wedges in the shop. All I have to do is find them.





Monte Miller
Denton, TEXAS
1978 BMW R100S
1981 BMW R65
1983 BMW R65
1995 Triumph Trophy
1986 VW Cabriolet
Back to top

IP Logged

marcmax
God Member
*****
Offline


Any day on two wheels
is a good day

Posts: 1116
Location: St Marys, GA
Joined: 03/25/09
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #1 - 11/26/14 at 12:31:00
Post Tools
The darn little critters can jump too. If it falls out when removing the perch, AND if you find it, it will be at least 10 feet away.


Keep your bike in good repair:  motorcycle boots are not comfortable for walking.

1982 R65ls        1984 R65ls        1991 K75
Back to top

IP Logged

decorn33
Full Member
***
Offline


Loving my R65

Posts: 102
Location: Princeton, NJ
Joined: 06/20/12
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #2 - 11/26/14 at 20:32:09
Post Tools
I checked out Bob's. The wedge is now listed as "AE" - no longer available.


1984 R65
Back to top

IP Logged

Tony Smith
God Member
*****
Offline


Graduate, Wallace and
Gromit School of Engineering

Posts: 2229
Location: Cairns, Australia
Joined: 07/23/13
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #3 - 11/27/14 at 17:14:04
Post Tools
Monte.

Why do you do these things to me!

I had to look last night and of course, my R65 clutch lever perch does not have one. I know the R100 does not and given that I put a new perch on the R65/80 last year I am certain it doesn't.

Out of curiosity I turned out the broken parts box and checked the R65 perch I broke trying to force it over a Renthal bar and the perch that came off the r65/80 (herself decided to change it for cosmetic reasons) - no wedgies found.

If the R100 ever had one, it would have been lost in 1979 when I pulled it apart to remove the fairing boots to let more air in. Nothing bad having ever happened since then I think I will pass on spending $30 plus postage to obtain a part whose need is doubtful. This strikes me as a BMW "the master link clip on a timing chain must be fitted against the engine block" issue.


1978 R100RS| 1984 R65 | 1992 KLE500 | 2002 R1150GSA
Back to top

IP Logged

Barry
God Member
*****
Offline



Posts: 4958
Location: England
Joined: 07/07/08
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #4 - 11/28/14 at 03:20:12
Post Tools
I still have the original wedges. I suspect all they do is allow the perch to get a good grip on the bars at relatively low levels of torque on the clamping screw. I tighten mine by hand using only the short end of the Allen key to limit the risk of stripping the threads and the perches never move.


Barry Cheshire, England 79 R45
Back to top

IP Logged

MikeFossl
Junior Member
**
Offline



Posts: 71
Location: Maple bay, BC, Canada
Joined: 08/08/14
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #5 - 11/28/14 at 18:10:35
Post Tools
I don't see anything like it on the right. Huh

I'm still hoping to pull the wedge in order to fit my 7/8" handlebar. Undecided



1985 R65
Back to top

IP Logged

montmil
God Member
In Memorial
*****
Offline



Posts: 8371
Location: Denton, Texas
Joined: 04/02/08
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #6 - 11/29/14 at 06:15:11
Post Tools
MikeFossl wrote on 11/28/14 at 18:10:35:
... I'm still hoping to pull the wedge in order to fit my 7/8" handlebar.


The tough nut to crack attempting to use 7/8-inch diameter handlebars is the throttle's twist grip tube binding. There was a good discussion on this topic just a couple weeks ago.


Monte Miller
Denton, TEXAS
1978 BMW R100S
1981 BMW R65
1983 BMW R65
1995 Triumph Trophy
1986 VW Cabriolet
Back to top

IP Logged

MikeFossl
Junior Member
**
Offline



Posts: 71
Location: Maple bay, BC, Canada
Joined: 08/08/14
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #7 - 11/29/14 at 11:09:11
Post Tools
The throttle twist grip tube just barely slides on the new 7/8" bars that I have.  I figure with a bit of "polishing" I can get it to work.

The clearance on the perches seem more problematic, hence my search for the wedges.


1985 R65
Back to top

IP Logged

montmil
God Member
In Memorial
*****
Offline



Posts: 8371
Location: Denton, Texas
Joined: 04/02/08
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #8 - 11/30/14 at 06:42:47
Post Tools
decorn33 wrote on 11/26/14 at 20:32:09:
I checked out Bob's. The wedge is now listed as "AE" - no longer available.


I also saw that 'AE' notice on Bob's R65 fiche page. Give 'em a phone call and reference the part number with the 'R' suffix. The wedge is an aftermarket item produced in Germany. Kinda remember I found it on an R80 fiche... maybe. It's also on the Max BMW site but goes for $14.00 rather than $10.00 from Bob's.

Check section 32-Steering:
http://www.maxbmwmotorcycles.com/fiche/DiagramsMain.aspx?vid=51897&rnd=04282014


Monte Miller
Denton, TEXAS
1978 BMW R100S
1981 BMW R65
1983 BMW R65
1995 Triumph Trophy
1986 VW Cabriolet
Back to top

IP Logged

Matt Chapter
God Member
*****
Offline


<insert witty remark here>

Posts: 533
Location: Austin, TX
Joined: 04/27/10
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #9 - 12/01/14 at 11:41:48
Post Tools
I have to say that I don't think this piece is in the '85 and on assembly.  Seems like the assembly comes together in a different way if I remember correctly.


'86 R65 with '84 motor ~66000 miles.  SS lines, Spiegler rotor, Progressive monoshock, Keihan silencers, a piece of Pichler fairing.
'76 CB400F ~26000 miles.  Weepy SS lines, big dent in the tank.
Back to top

IP Logged

Bengt_Phorqs
God Member
*****
Offline


There are no wrong turns
on a motorcycle

Posts: 1419
Location: Bedford, TX
Joined: 01/22/09
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #10 - 12/01/14 at 16:52:50
Post Tools
Check with Hans Lowe at BMWhucky.com.  He has the wedges in his catalogs and I've had good luck dealing with him.

32 72 2 072 223             wedge for Magura grip       1970 on       $ 13.00

And my experience with a 7/8"OD handlebar is that you will have too much interference on the throttle side, even with polishing assuming you are using BMW OEM controls.  A 7/8" bar is .875" OD and the 22mm is .866.


Bengt Phorqs, Elwood R90/6, Jake R90/6, R1100S, R1200RT , Triumph TR250W, Yamaha TY250A Trials
Back to top

IP Logged

montmil
God Member
In Memorial
*****
Offline



Posts: 8371
Location: Denton, Texas
Joined: 04/02/08
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #11 - 12/01/14 at 18:29:11
Post Tools
MikeFossl wrote on 11/29/14 at 11:09:11:
The clearance on the perches seem more problematic, hence my search for the wedges.


The wedges used on the original <1984 Magura handle bar unit are designed to keep the pinch ears from closing up too far and fracturing the aluminum. They are not designed to force the components open.

22mm and 0.875 inch:  Mars and Venus

I just received a complete left-side handlebar unit for the '83 R65. It's from a 1991 R100 and shares the same current BMW part number as is listed for the 1983 R65. No wedge required. Updated Magura production that supercedes the earlier wedge-required units.


Monte Miller
Denton, TEXAS
1978 BMW R100S
1981 BMW R65
1983 BMW R65
1995 Triumph Trophy
1986 VW Cabriolet
Back to top

IP Logged

wirespokes
God Member
*****
Offline


Beemerphile

Posts: 1264
Location: Portland Oregon
Joined: 04/02/09
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #12 - 12/03/14 at 00:47:07
Post Tools
You can tell if yours needs the wedge if the edges of the slot look like the one pictured. The newer perches don't have the wedge shaped slot.


BMW airhead gauge repair
Back to top

IP Logged

Kelvin
YaBB Newbies
*
Offline


R65LS

Posts: 22
Location: Sydney, Australia
Joined: 04/22/18
Gender: Male
Re: Grounded by a Lost Wedgie
Reply #13 - 04/30/19 at 04:45:45
Post Tools
Good thread: forewarned is forearmed!

I recently replaced the RHS handlebar mount on my R65LS: the old mount included the wedge, the new one didn't require it. The difference is visible in this photo (old on left, wedge at bottom of pic).




1983 R65LS 1985 to 1988
1983 R65LS 1996 to present.
1984 R65LS 2019 to present.
